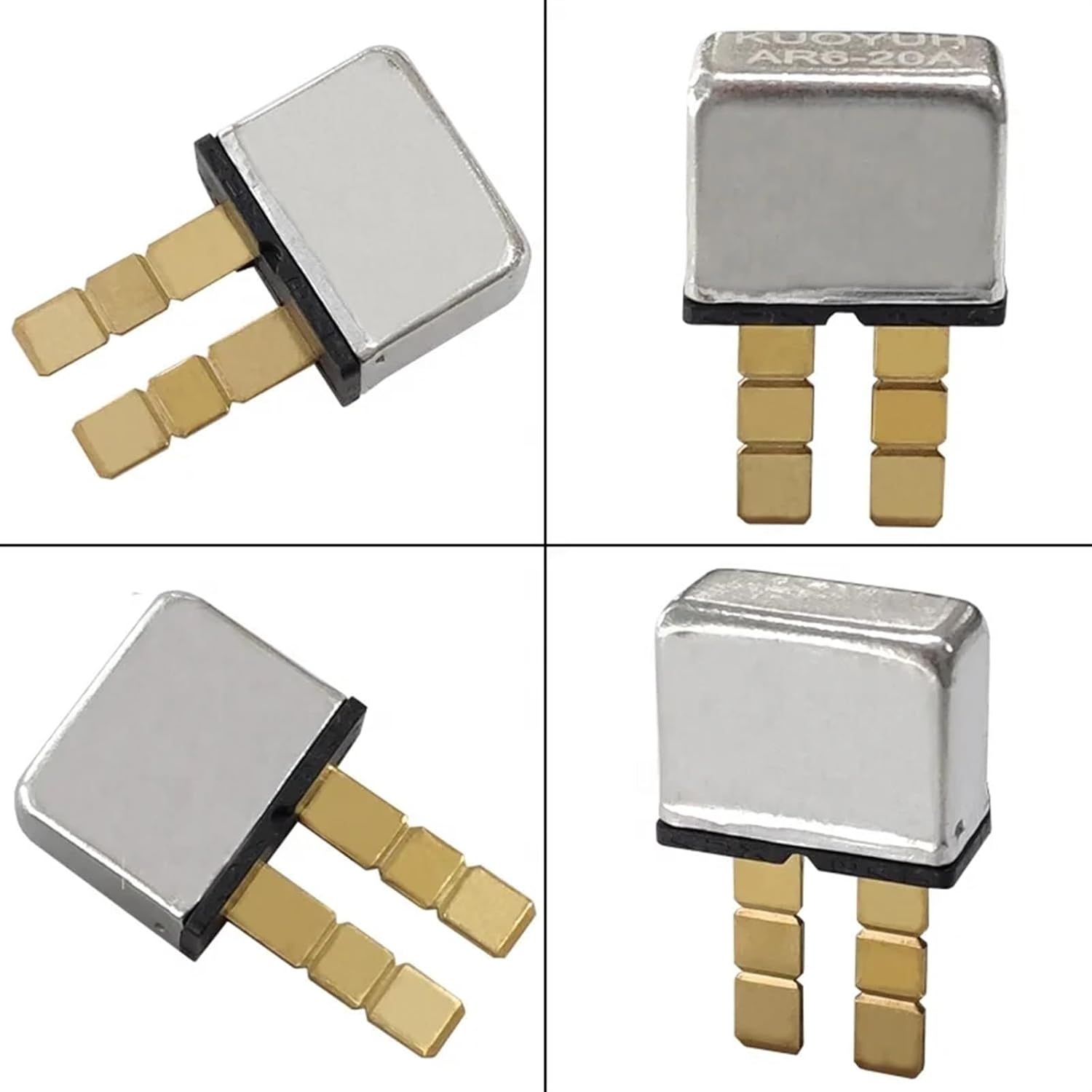

AR6 12V 24V 20A Car Truck Circuit Breaker Auto Reset Circuit Breaker(10A)
Product details
| Management number | 212606506 | Release Date | 2026/04/06 | List Price | $19.84 | Model Number | 212606506 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Circuit BreakersProduct DescriptionTypical applicationsCurrent rating range 330A Input voltage rating 12/24 VDC Compliances SAE J553 Contact Endurance 125Vac X150% of rated current >500 cycles Contact Endurance 125Vac X200% of rated current >200 cycles Insulation Resistance >100MOHM (DC 500V) Dielectric Strength > 1,500VAC/min. Breakering Capacity 4 times rated current Automotive Type Auto- Reset; 12VDC Automotive Type I Reset Time Within 60 SEC Mechanical/Environmental DataOperating Ambient Temperature: -10 Storage Temperature Rating: -40C to +100C.Termination: 250''(6.3mm)quick connects or solder terminalsTypical applicationsBattery chargers, trucks, buses, RV's, trolling motors, etcCalibration(at25 ) of Rated Current: Hold , No Trip 150% of Rated Current: Trip Within 1 Hour.200% of Rated Current: 5-25 sec Trip300% of Rated Current: 1.5-5 sec TripRelated ProductsMORE PRODUCT PLEASE CHECK HERE103-AC103-MA102-MAAR1-30AAR-10AAR6-20A-C3
- Circuit Breakers
- AR6 12V 24V 20A Car Truck circuit breaker Auto Reset Circuit Breaker
| Department | Unisex Adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | JDOUNFMO |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | JDOUNFMO |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
