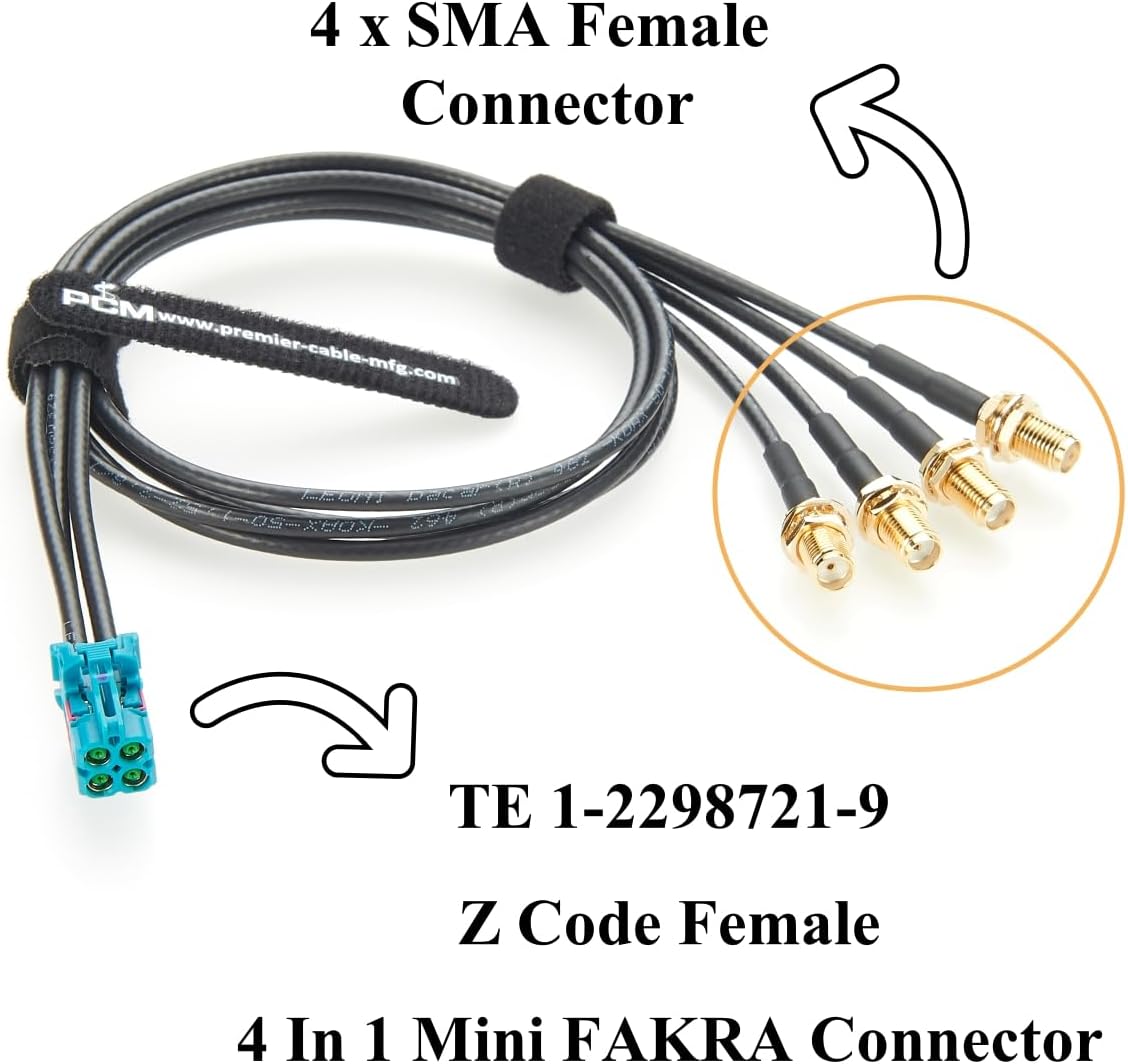

TE Quad Mini Fakra Z Code Female to SMA Female Four Ports Splitter Cable 1-2298721-9 Mini Fakra to SMA GPS Camera Antenna Cable for Telematics,ADAS, Infotainment, Satellite Radio(0.5M/1.64FT)
Product details
| Management number | 215126128 | Release Date | 2026/04/12 | List Price | $24.00 | Model Number | 215126128 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SpecIfication:Product Name: TE 4 In 1 Mini FAKRA to SMA CableConnector A: 4 In 1 Mini FAKRA Connector, Z Code, Female, Original TE 1-2298721-9Connector B: 4 x SMA Connector, FemaleLength: 0.5m, Or OEMWire: LEONI DACAR 462 Coaxial CableImpedance: 50 OhmFrequency Range: DC-6GHzTempereture Range: -40°C to 105°CSMA Contact: Gold PlatedVSWR: 1.800 MAXGlued Heat Shrink Tube: OD: 3.5mm, Black, L=20mm
- ✔Original TE 1-2298721-9 – The Quad Mini FAKRA to 4 SMA Female high-performance RF coaxial cable assembly, features a TE 1-2298721-9 Mini FAKRA 4 in 1 Z-code female connector on one end.
- ✔4 x SMA Connector – Mini Fakra to 4 Ports SMA Splitter Cable, feature SMA Female connectors on the other,with glued heat shrink tubing.tightly seals the connection, preventing moisture, dust, and oil from entering, while offering enhanced durability and stability.
- ✔High-Frequency Performance – GPS Camera Antenna Cable with LEONI DACAR 462 Coaxial Cable,50 Ohm Impedance,support stable transmission up to 6GHz,low signal loss,strong shielding,resist electromagnetic interference (EMI) and radio frequency interference (RFI).
- ✔Durability – Automotive ADAS RF Signal Splitter Cable, operating temperatures ranging from -40°C to +105°C, supporting at least 100 mating cycles, with excellent vibration and shock resistance.for withstand harsh automotive environments.
- ✔Application – TE 4 In 1 Mini FAKRA Z to SMA Test Cable for ADAS, Infotainment, In-Vehicle Telematics, GPS Navigation, Autonomous driving, Satellite Radio, Wireless communication, Wireless LAN, Cameras, Remote Vehicle Diagnostics and so on.
- ✔Custom Cable – We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
| Brand | Plinkwirekb |
|---|---|
| Impedance | 50 Ohms |
| Item Weight | 0.07 Kilograms |
| Manufacturer | Dongguanjindiedianziyouxiangongsi |
| Maximum Range | 0.5 Meters |
| AntennaDescription | Satellite |
| Warranty Description | If the product has any quality problems, you can contact us for replacement. |
